Magic Smart Fan : MSF-601
4


     This Magic Smart Fan has 40 pcs super bright LED built-in on it blade. Photos or messages can be displayed on it. It is easy to change the photo/messages via it's USB port.

     It is recommended to apply in advertisement especailly in open area, roadside cafe, pub or bus terminal etc. It is a low cost investment and it run at low maintenance cost.

     This fascinating fan is effective to draw customers interest while it is low cost / easy to maintain.

Main Feature

  • Built-in 40 pcs super bright LED.

  • Easy to change the picture or difference language character by USB cable.

  • provide CD disc software for up load information from PC.

Technical Parameters
 Picture Quality：  80 x 80 pixel
 Capacity of Picture:  8 sheets
 Color:  Multi color
 Format:  bmp (bitmap)
 Mini USB:  USB or R232 Port
 Supply Voltage:  AC 220V/50Hz
 Rated Power:  55 Watt
 Door Leaf Dimension :  350 mm
 Packing Dimension:  54.5 x 32 x 45 cm



return top

SMART HOME GATEWAY：DCT-518
4

      DCT-518 is a smart home gateway composed of one base station and hand-held remote. Base station is the heart of the gateway, and communicate with the sub-device by a star network topology. One base station can register more sub-device can support 5 equipments communicating at the same time. Hand-held remote can realize not only wireless remote control , but also provide high-quality voice calling functions.
Main Feature

  • Can control all devices compatible with the smart home system.

  • Supports two-way communication, showing the controlled device status feedback in time.

  • With the PSTN interface, it support remote control the sub-device by fixed telephone.

  • Support GSM and 3G Wireless access platform router.

  • Easy install and use.

  • Privacy is good：Use DSC encryption algorithm to encrypt voice and data.

  • Un-interrupted ：Independent band wave.

  • Safe and reliable ：Using more than 10 years in 110 countries，certified the security In Europe Approved to use in Hospital (DECT).

Technical Parameters
 Communication Distance :  300 Meter
 Supply Voltage Gateway：  5V DC 500mA adaptor
 Supply Voltage Remote Handset ：  2 pcs AAA re-chargeable batteries
 Remote HS standby Current :  2mA
 Remote HS Emission Current ：  40 mA
 Operating Temperature ：  -10 ~ +60 ℃
 Operating Humidity：  Maximum 95% RH
 Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency ：  1.8G / 1.9G / 2.4G Hz



return top

SMART WALL SWITCH：CW-D100
4

     CW-D100 series is a mechanical  smart wall control switch with built in DAS-RF switch module. Simple install and 1 – 3 channel switch control, has a manual switch On/Off. User easy to control by DCT-518 remote handset.

Part Number
CW-D100M:
One-button
CW-D200M:
Twin-button
CW-D300M:
Three-button

Main Feature

  • Simple to install.

  • can be controlled by all DCT-518 compatible remote handset.

  • Supports two-way communication, Provide the control state feedback after being controlled.

  • 85-265 VAC 50/60Hz power supply.

  • 5 color for choice.

Technical Parameters
 Communication Distance :  300 Meter
 Supply Voltage ： 85 ~ 265 VAC 50/60Hz
 Rated Power ：  Maximum 1100 W
 Rated Current ：  Maximum 5 A
 Operating Temperature ：   -10 ~ +60 ℃
 Operating Humidity：  Maximum 95% RH
 Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency :  1.8G/ 1.9G/ 2.4G Hz
 Size ：  88mm x 88mm x 23mm



return top

SMART POWER OULTET：CS-D200
4
      CS-D200 series is Control Switch Power Outlet with built in DAS-RF switch module. Simple install and single channel switch control On/Off. User easy to control by DCT-518 remote handset.
Main Feature

  • Simple to install.

  • Can be controlled by all DCT-518 compatible remote handset.

  • Support two-way communication, Provide the control state feedback after being controlled.

  • Socket type of all countries to choose.

  • 85-265 VAC 50/60Hz power supply.

Technical Parameters
 Communication Distance ：  300 Meter
 Supply Voltage ：  85 ~ 265 VAC 50/60Hz
 Rated Power ：  Maximum 2200 W
 Rated Current ：  Maximum 10 A
 Operating Temperature ：   -10 ~ +60 ℃
 Operating Humidity：  Maximum 95% RH
 Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency ：  1.8G/ 1.9G/ 2.4G Hz
 Size ：   88mm x 88mm x 23mm




return top

PLUG & PLAY POWER OUTLET：CPP-D300
4
     CPP-D300 is a Control Plug & Play Power Outlet with built in DAS-RF switch module. Single channel switch control and has a manual switch On/Off. User easy to control by DCT-518 remote handset.
Main Feature

  • Plug & Play work use, Easy to install.

  • can be controlled by all DCT-518 compatible remote handset.

  • Supports two-way communications. Provide the control state feedback after being controlled.

  • Socket type of all countries to choose.

  • 85-265 VAC 50/60Hz power supply.

Technical Parameters
 Communication Distance ：  300 Meter
 Supply Voltage ：  85 ~ 265 VAC 50/60Hz
 Rated Power ：  Maximum 2200 W
 Rated Current ：  Maximum 10 A
 Operating Temperature ：  -10 ~ +60 ℃
 Operating Humidity：  Maximum 95% RH
 Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency ：  1.8G/ 1.9G/ 2.4G Hz
 Size：  80mm x 80mm x 50mm



return top

MULTI POWER CORD：CMP-D400
4
     CMP-D400 series is a Control Multi Power Cord with built in DAS-RF switch module. (M-series) Each channel has an independent switch enable the user easy to control individually using By DCT-518 remote handset.
Part Number
CMP-D400S:
Whole set On/Off Control
CMP-D400M:
Independent On/Off Control
**/U:
Plus 2 USB socket
Main Feature

  • Easy install and usage .

  • With separate light and switch functions.

  • Can be controlled by all DCT518 compatible remote handset.

  • Supports two-way communications, provide the control state feedback after being controlled.

  • With two USB socket (optional).

  • Socket type of all countries to choose.

  • 85-265 VAC 50/60Hz power supply.

Technical Parameters
 Communication Distance ：  300 Meter
 Supply Voltage ：  85 ~ 265 VAC 50/60Hz
 Rated Power ：  Maximum 2200 W
 Rated Current ：  Maximum 10 A
 Operating Temperature ：  -10 ~ +60 ℃
 Operating Humidity：  Maximum 95% RH
Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency ：  1.8G/ 1.9G/ 2.4G Hz
 Size ：  275mm x 55mm x 45mm




return top

DAS RF MODULE：DH-319
4

    DAS DH-319 series is a socket-mounted module. Small Size and easy assembly in any main board. Low cost and fastest to develop a DECT compatible products.

    DAS DH-319 provided the Ceramic type, PCB type and Bar type antenna, Greatly reduced module height and volume.

Main Feature

  • ARM-9 Core and Adopt high-performance.

  • Excellent receiver sensitivity.

  • Various interface ：IIC、SPI、UART、GPIO、 ADC、 PWM、MIC、SPK、PCM、IOM，to meet a variety of complex applications.

  • Built-in Battery monitor .

  • Privacy is good：use DSC encryption algorithm to encrypt voice and data.

  • Un-interrupted：Independent band wave.

  • Safe and reliable：using more than 10 years in 110 countries, certified the security.

Technical Parameters
 Communication Distance ：  300 Meter
 Supply Voltage ：  DC 3.3 V, 200 mA
 Transceiver Current ：  40 mA
 Transmit Rate ：  25.6 Kbps – 256 Kbps
 Transmit Power ：  23 dBm
 Operating Temperature ：  -10 ~ +60 ℃
 Operating Humidity ：  Maximum 95% RH
 Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency ：  1.8G / 1.9G / 2.4G Hz
 Size ：  46 mm x 24.5 mm x 11.5 mm





return top
4
INFRATED REPEATER：CIR-D800
    CIR-D800 is a Smart wireless infrared repeater. Built in DAS-RF switch module, has IR signal learning function. Support most of the infrared remote control, such as Air Conditioner, Audio System, Heater, DVD Player,…etc. It can binding with 8 devices, which can be 20 functional points for each device. User easy to control by DCT-518 remote handset.
Main Feature

  • Simple to install and use.

  • Can be controlled by all DCT-518 compatible remote Handset.

  • Supports two-way communication, Provide the control state feedback after being controlled.

  • Memory function (EEPROM 16KB).

  • IR signal learning function ( 8 Group x 20 points).

  • 85-265VAC 50/60Hz power supply.
Technical Parameters
 Communication Distance ：  300 Meter
 Supply Voltage ：  85 ~ 265 VAC 50/60Hz Power Supply
 Remote control Device ：  All standard IR devices
 IR Control Distance with Device ：  ≥ 15M
 Infrared Emit Angle ：  ≤ 120°
 Operating Temperature ：  -10 ~ +60 ℃
 Operating Humidity：  Maximum 95% RH
 Communication Mode ：  DECT / DECT 6.0 / WDCT
 Frequency：  1.8G/ 1.9G/ 2.4G Hz
 Size：  88mm x 83mm x 55mm





return top
GSM WIRELESS ACCESS ROUTER：DH-PX1685
4

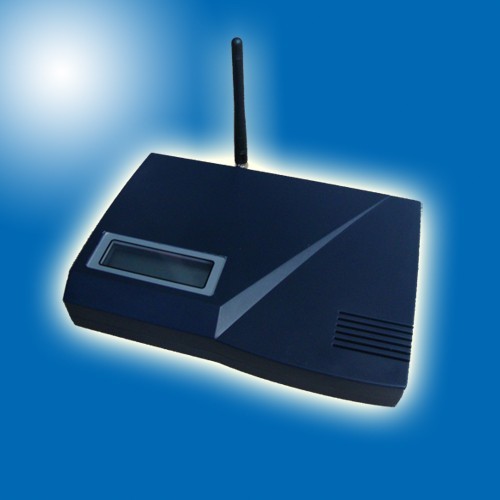

    DH-PX1685/G is a GSM Wireless access router. Can connect to any analog phone or analog PBX to replace the PSTN telephone line. Mainly used for mobile operators or fixed-integrated competitive SMEs, residential area and IP supermarket.
Main Feature

  • Support international GSM mobile voice service.

  • Support fixed and mobile operators access at the same time.

  • Support breakpoints work (optional) .

  • Provide Anti-polarity charging signal .

  • Provide Standard communication voltage can be connected with the user switch.

  • Support DTMF standard, show calling number in LCD display.

  • Preset called competence international, national and local call.

  • Preset Local area code, local section number and ban dial numbers.

  • Encryption settings ，Such as PIN code, PUK code encryption machine card lock function.

  • Operator IP prefix preset .

Technical Parameters
 Frequency ：

GSM 900/ 1800 MHz Automatic Switching

CDMA 800/ 1900 MHz ( Optional)
 Supply Voltage ：  5 V, 1000 mA adaptor
 Frequency Stability ：  Better than 2.5 ppm
 Signal Sensitivity ：  Can reach -94 dBM
 Operating Temperature ：  -0 ~ +50` ℃
 Operating Humidity ：  Maximum 95% RH
 Transmit Power ：   < 2 W
 Receiver Sensitivity ：  -91 dBm
 Size：  198 mm x 150 mm x 45 mm





return top
Smart water heaters : DAS-WH-D319
4
    The product is a smart water heater built-in wireless module, you can use the remote control switch to control the water heater in the home,and real-time view of temperature, but also in outdoor remote control by telephone.
Main Feature

  • Can be controlled By all compatible remote.

  • Supports two-way communication,provide the control state feedback after being controlled.

  • Internal remote can check emperature real-time and control switch.

  • Automatic temperature control.

  • With real-time, booking, energy saving, booking+energy saving,four operating modes.

  • Safe and durable: the unique anti-power wall structure, a unique anti-power wall security warning system.

  • Multiple protections are certified by the state, such as:leakage protection, over temperature protection, pressure over-voltage protection.

  • Water mixing valve adjustment.

  • Temperature sensor open, short fault detection automatically.

Technical Parameters
 Communication Distance ：  300M
 Supply Voltage ：  220VAC 50Hz
 Rated Power ：  Maximum 1500W
 Rated Current：  6.8 A
 Rated Pressure：  0.6MPa
 Rate of hot water （µ）：  55%
 Grade of waterproof：  IPX4
 （ε）：  0.8
 Size：  ø380mm x 660mm
